Home Network Gear Makes More Sense When Each Box Has a Job

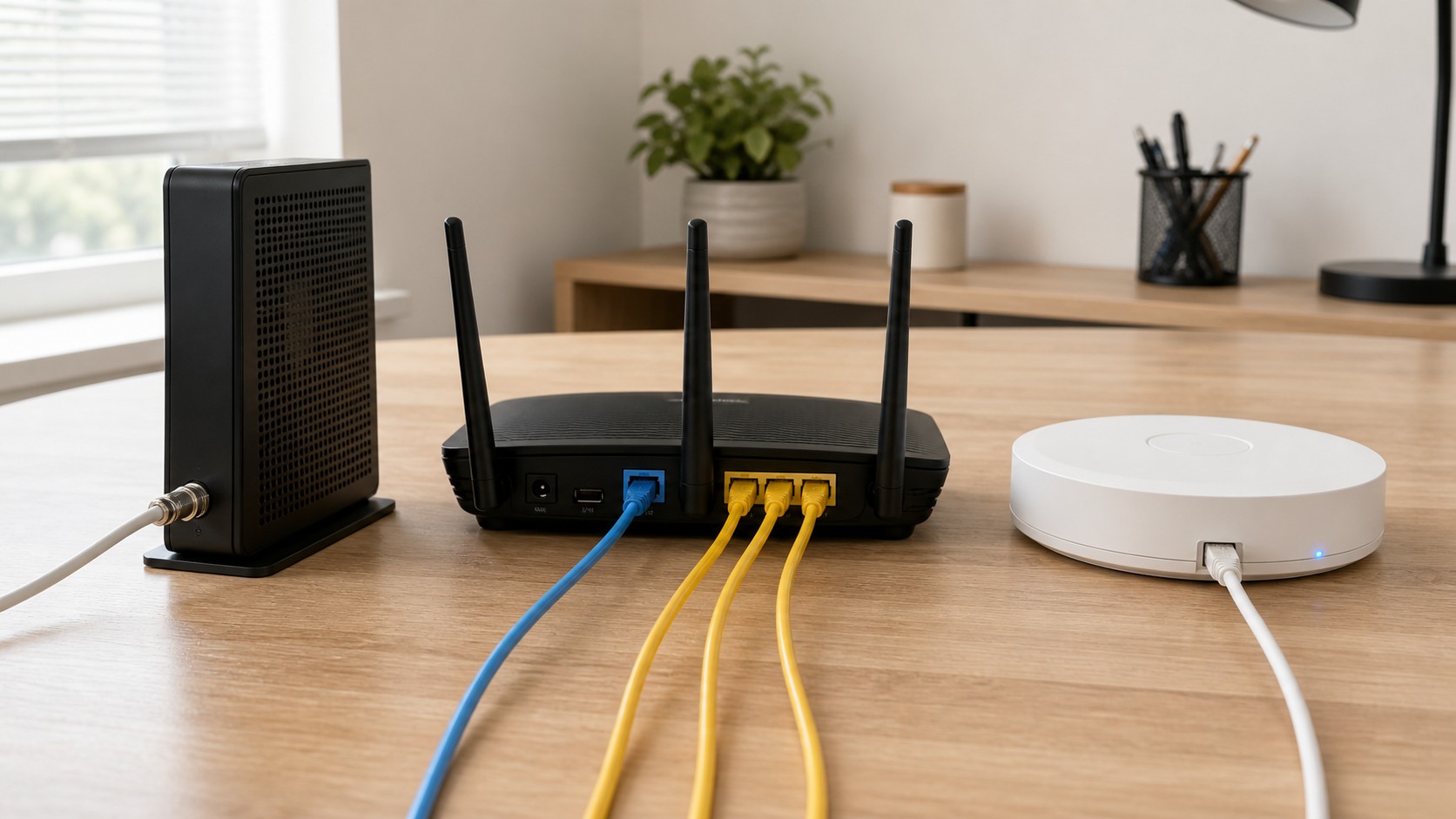

Router, modem, and access point are often used interchangeably in casual conversation, but they do different jobs. A modem or optical terminal connects the home to the internet provider’s access network. A router directs traffic between the home network and the wider internet, usually handling addresses, firewall behavior, and local network management. An access point creates Wi-Fi so wireless devices can join the local network. Many households have a single gateway that combines several of these roles, which is why the terms get blurry. Once the roles are separated, troubleshooting and upgrades become much easier: you can tell whether the problem is the service handoff, routing, wireless coverage, or device configuration.
Start With the Internet Handoff
The first job is getting the provider connection into the home network. Cable and DSL services usually use a modem. Fiber services often use an optical network terminal, commonly called an ONT. Fixed wireless may use an outdoor receiver or indoor gateway. The exact box changes by technology, but the role is the same: it terminates the provider access line and presents a usable connection to the customer network.
If this handoff is offline, the rest of the home network cannot fix it. A perfect router and excellent Wi-Fi will not matter if the modem has lost signal or the ONT is not provisioned. That is why service lights and provider activation status are early troubleshooting clues.
The Router Creates the Local Network
The router is the boundary between the home network and the outside internet. It assigns local addresses, sends traffic to the right place, performs network address translation, and usually provides basic firewall behavior. In many homes, the router is also where guest networks, parental controls, DNS settings, and port forwarding are managed.
A router can be a standalone box or part of a provider gateway. The role matters more than the packaging. If two routers are active in a row, the home may experience double NAT, confusing device discovery, or trouble with gaming and remote access. Bridge mode or access point mode often resolves that by making roles clearer.
The Access Point Is About Wi-Fi
An access point connects wireless devices to the local network. It does not need to be the device that routes traffic to the internet. In offices, schools, hotels, and larger homes, multiple access points may be wired back to switches and managed as one Wi-Fi environment. This separates coverage from routing, which makes the network easier to scale.
In a typical home gateway, the Wi-Fi radios are built into the same box as the router. That is convenient, but placement can suffer because the provider line may enter the house in a closet, basement, or corner. Adding an access point can improve coverage without changing the internet service or replacing the routing layer.
Gateways Blur the Vocabulary
Providers often install gateways because one device is simpler to support. A gateway may include the modem or fiber handoff, router, Ethernet switch, Wi-Fi access point, firewall, and sometimes voice service hardware. For many households, that is enough. The downside is that people start calling the entire device a modem, even when only one part of it performs the modem role.
This blurry vocabulary can lead to wrong purchases. Someone may buy a new modem hoping for better Wi-Fi, when the real problem is router placement or access point coverage. Someone else may buy a powerful router when the provider modem is failing. Naming the role keeps the fix attached to the symptom.
How to Troubleshoot by Role
When service is completely down, begin at the handoff: line status, ONT or modem lights, provider outage notices, and account provisioning. When wired internet works but every wireless room is poor, focus on access point placement, Wi-Fi standards, interference, and backhaul. When wired and wireless devices connect but apps behave strangely, inspect router settings, DNS, firewall rules, or double NAT.
This role-based troubleshooting avoids random resets. Restarting everything can temporarily mask a problem, but it does not teach you where the weakness lives. A simple map of modem or ONT, router, switch, access points, and key wired devices makes support calls and upgrades much easier.
What to Buy Depends on the Bottleneck
A faster modem only helps if the current modem cannot support the provider plan or has service-line problems. A stronger router helps when routing capacity, security updates, ports, or management features are lacking. An access point helps when Wi-Fi coverage is the weak link. A switch helps when wired devices need more ports.
The right purchase is often less exciting than the biggest box on the shelf. A modest access point in the right location can outperform a premium router stuck in a utility closet. A new Ethernet cable can restore a gigabit link that an expensive device would not have fixed.
Fiber Homes Have a Slightly Different Shape
Fiber service may not use a consumer modem at all. The ONT converts the optical signal into an Ethernet handoff for the router. Sometimes the ONT is outside, sometimes inside, and sometimes integrated into provider equipment. Customers may still say modem because the ONT occupies the same mental slot: it is where the provider line becomes home-network service.
This distinction matters when buying gear. A cable modem will not replace a fiber ONT. A personal router can often connect to the ONT or provider gateway, but the provider's rules, authentication method, and voice service requirements may affect the setup.
Access Points Are Not Extenders by Default
The term extender often describes a device that repeats Wi-Fi wirelessly. An access point normally connects by Ethernet and broadcasts Wi-Fi from that wired link. That difference is important because repeating a weak wireless signal can cut performance, while a wired access point starts from a stronger backhaul path.

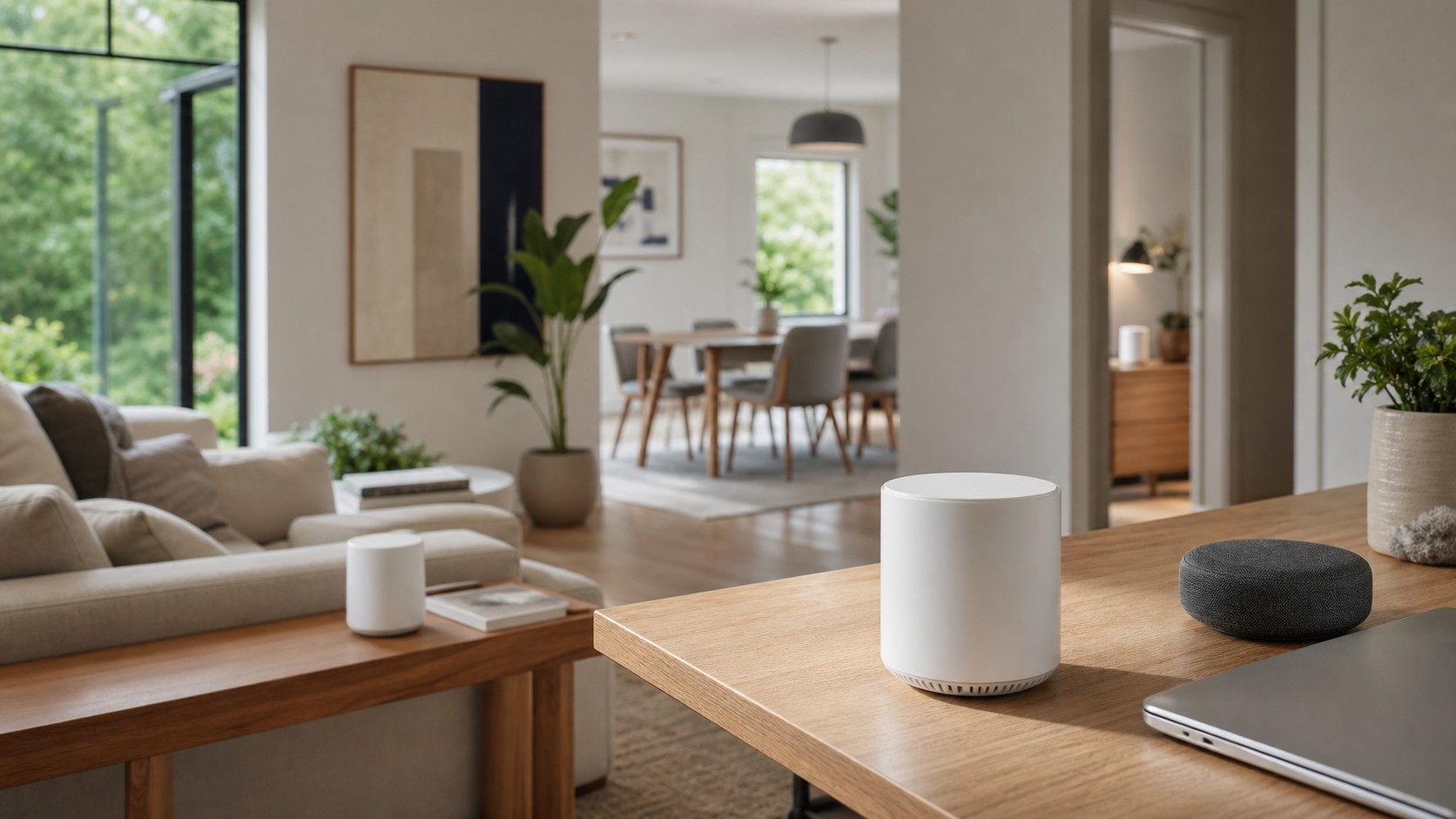

Mesh systems sit between these ideas. A mesh node may use wireless backhaul like an extender or wired backhaul like an access point. Understanding the mode prevents confusion when performance differs from expectations.
The Practical Mental Model
Think of the modem or ONT as the provider handoff, the router as the traffic manager, and the access point as the Wi-Fi doorway. A gateway combines those roles in one case. Once you see the roles, home networking becomes less mysterious.
The best network is not defined by having the most boxes. It is defined by having each necessary role handled well, placed sensibly, and updated over time.
Security Responsibilities Follow the Role
Security also follows device roles. The router or gateway usually handles firewall behavior, guest network separation, admin passwords, and firmware updates that protect the network boundary. Access points need updates too, but they usually are not the main policy brain unless the system is centrally managed. Modems and ONTs may be controlled largely by the provider.
This division matters because people sometimes update laptops and phones while ignoring network equipment for years. A router with abandoned firmware is a weak point even if internet speed feels fine.
A Simple Upgrade Order
A practical upgrade order starts with the failure you can prove. If the provider handoff drops offline, involve the provider or replace the approved modem. If wired speed is strong but Wi-Fi is weak, improve access points or placement. If many devices overload the network, inspect router capacity and settings. If wired ports are scarce, add a switch.
That order keeps spending tied to evidence. Home networking gets easier when each box has a named job and each symptom is matched to the role most likely to cause it.
Where Switches Fit Into the Picture
A switch is another common box that deserves a clear role. It does not replace a modem, ONT, router, or access point. Instead, it expands the wired local network by adding Ethernet ports. Desktops, game consoles, TVs, access points, printers, and network storage can all connect through a switch if the router remains the traffic manager.
For many homes, adding a switch is the quiet upgrade that makes everything else easier. It allows access points to use wired backhaul, keeps important devices off crowded Wi-Fi, and reduces the pressure to place every device near the router.
Why Provider Support Gets Confusing
Provider support teams often support only the equipment they supplied. If a customer adds a personal router, mesh system, switch, or access point, the provider may verify service to the gateway but stop short of troubleshooting the full home network. That boundary can frustrate users who see the internet as one experience.
Clear roles make the conversation better. If the modem or ONT is online and wired speed at the gateway is strong, the provider has useful evidence. If the problem appears only after a personal router or access point, the customer knows where to focus next.
How Gateways Can Be Used Well
A provider gateway is not automatically bad. For a small household with ordinary needs, a current gateway in a decent location can be simple and reliable. It reduces the number of boxes, keeps support straightforward, and may include voice or TV features that depend on provider integration.
The trouble begins when the gateway is asked to do a job it cannot do well. A gateway in a basement corner may be a fine service handoff but a poor Wi-Fi source. In that case, keeping the gateway while adding a properly placed access point may be smarter than replacing everything.
The Clean Network Habit
The clean habit is to write down what each device does, where cables go, and which box controls Wi-Fi names, DHCP, and firewall settings. That small record makes future upgrades less stressful. It also helps another person understand the network if the main household troubleshooter is unavailable.
Home networks do not need to be complicated, but they do need to be understandable. Once modem, router, access point, gateway, and switch roles are visible, most decisions become more practical and less mysterious.
A Calm Way to Explain It
A calm way to explain the whole setup is to follow the path. The provider signal enters through a modem, ONT, or gateway. The router decides where traffic goes and protects the local network boundary. Switches distribute wired connections. Access points invite wireless devices onto the network. A gateway may combine several of those roles.
That path is enough for most troubleshooting conversations. When someone says the internet is broken, the next question becomes which role is failing. With that mindset, home network gear stops being a pile of similar boxes and becomes a set of understandable tools.
Why the Distinction Saves Money
The distinction saves money because it prevents upgrades aimed at the wrong role. A new router cannot repair an unprovisioned modem, and a new modem cannot improve a weak upstairs Wi-Fi signal. An access point cannot replace the traffic management a router provides. Once the jobs are named, every purchase has to answer a simple question: which network role is currently failing or missing?
The Naming Benefit
Using the right name also helps when shopping online or talking with support. Searches become sharper, manuals make more sense, and compatibility warnings are easier to understand. Clear language turns a confusing upgrade into a manageable decision.
